Product Description:

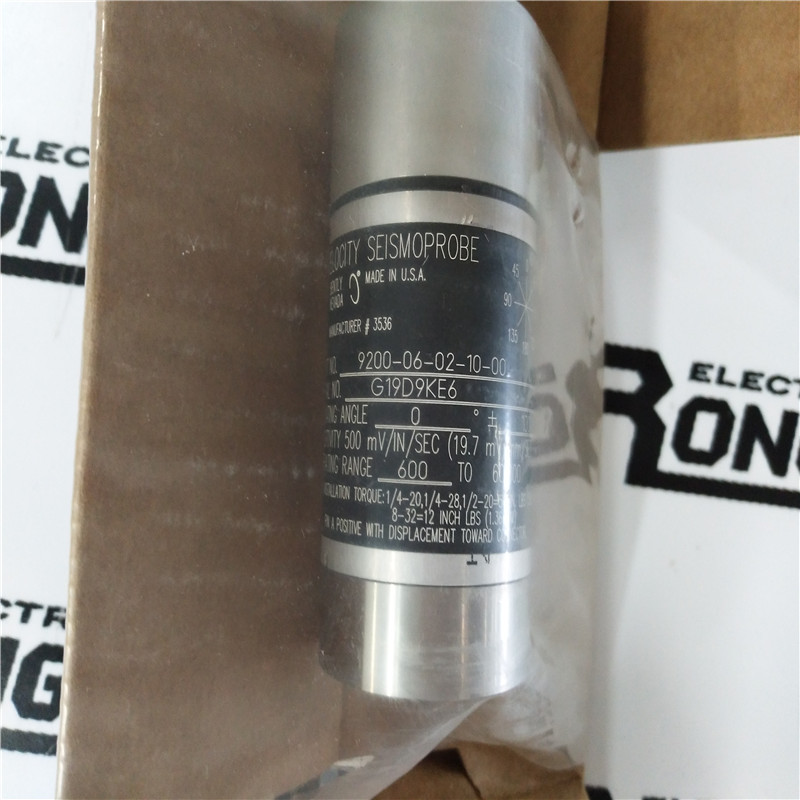

Vibration monitor (9200-06-02-10-00)
Brand:Bently Nevada
Product features:
Sensitivity: 20 mV/mm/s (6000 cpm) ±5% at 100 Hz (500 mV/in/s) and 25 mm/s (1 in/s) zero to peak ±5% at 100 Hz (6000 cpm) when correctly terminated and positioned at the calibration angle.
Frequency response: from minimum operating frequency (see order information) to 1 kHz (60000 cpm); typical values from + 0 to ±3dB).
Lead length: up to 305m (1000 ft) between bently 9200 and 3300 monitors.
Frequency attenuation as the length increases.
Use and storage temperature: 9200:-29 °C to + 121 °C (- 20 °F to + 250 °F) 74712:-29 °C to + 204 °C (- 20 °F to + 400 °F).
Speed-displacement converter: model 9513 requirements:-18 Vdc; model 46687 requirements:-24 Vdc, output sensitivity (input is 500 mV/in/s).
9513-02: 200 mV/mil (8 V/mm) ±5%; 46687-01: 200 mV/mil (8 V/mm) ±5%.
Frequency range: minimum operating frequency to 10 kHz (600000 cpm)
