Product Description:

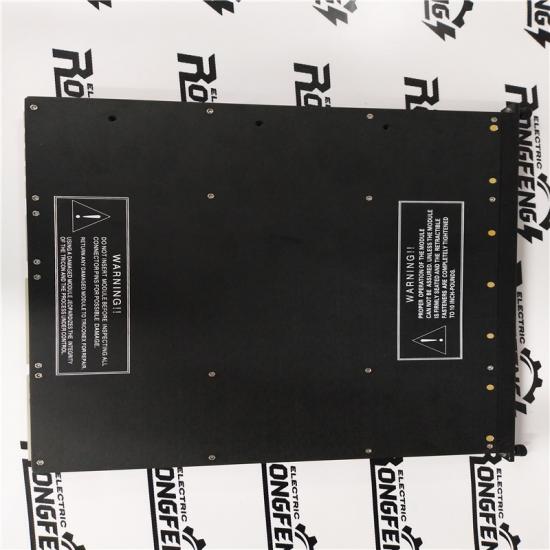

Digital Output Module (3601E)
Brand:Triconex
Additional Information
● Model Number 3601E
● Nominal Voltage 115 VAC
● Type TMR, DO
● Output Signals 16, non-commoned
● Voltage Range 80-155 VAC
● Voltage Drop1 < 3V, typical
● Frequency Range 47-63 Hz
● Current Ratings, 2A per point
● Maximum 12A surge/cycle
● Load Leakage 2 mA maximum @ 60 Hz
● Chassis Leakage 4 mA maximum @ 60 Hz
● Fuses (on Field 1 per output,
● Termination) 3A fast-acting
● Point Isolation 1,500 VDC/ 2500 VDC2
● Diagnostic Indicators
● On or Off state 1 per point
● Module Status PASS, FAULT, ACTIVE
● Field Alarm LOAD/FUSE
● Color Code Green
● MFG: TRICONEX, Made in USA
