Item NO.:
DO3401Lead Time:
1-2daysProduct Orgin:
USAShipping Port:
CHINAPayment:
T/T 、PayPal、Western Uniongoods stock:
3Warranty :
one yearShipping Detail:
Fedex and UPS
If you don't find the model you want in our webpage, please contact us without hesitation! For more product details, please contact us!!
Product Description:

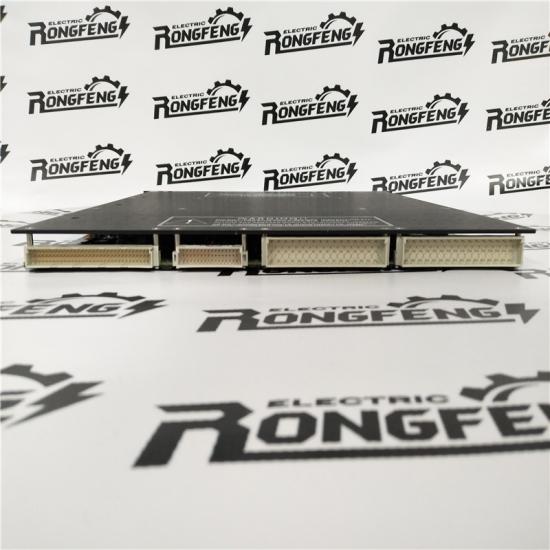

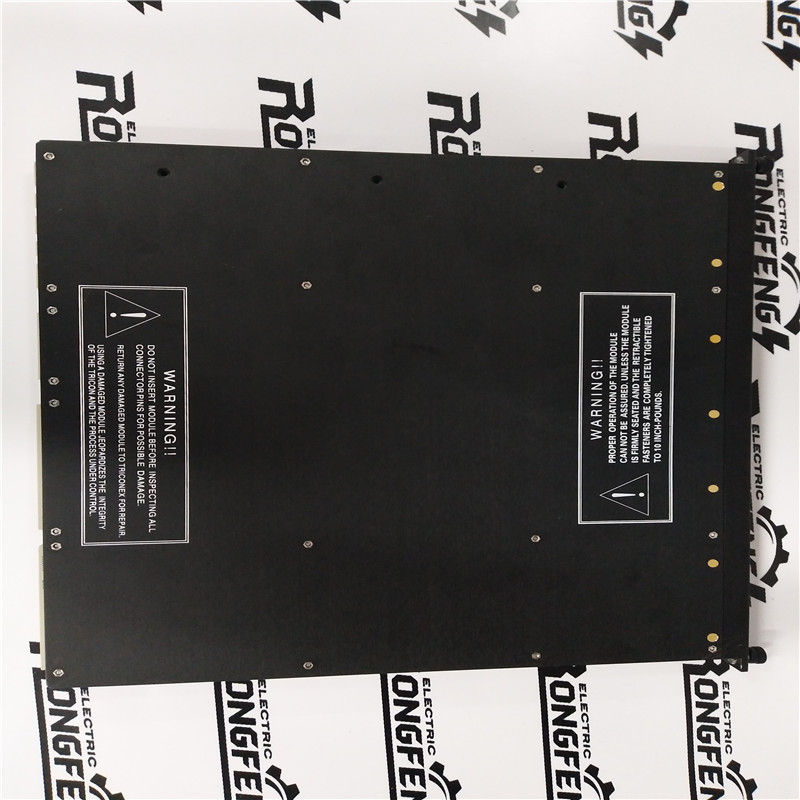

Digital Output Module (DO3401)
Brand:Triconex
Additional Information
● Nominal output voltage 24 VDC
● Specified operational voltage range 15 to 30 VDC
● Absolute maximum output voltage 33 VDC
● Absolute maximum reverse input
● voltage – 0.6 VDC
● Output current
● Switching <4.8 A, self-limiting
● 3.0 A, typical
● Degraded mode > 0.7 A, self-limiting
● 1.5 A, typical
● Field alarms Loss of field power, output point shorted On or Off
● Loop-back thresholds 0–5 VDC = Off region
● 6–14 VDC = transition region
● 15–30 VDC = On region
● Leakage to load (Off state) <1 mA
● Diagnostic glitch duration <2 ms, maximum 500 ?s, typical
● Diagnostic fault coverage
● Maximum toggle rate >20 ms
● Minimum toggle rate Not applicable
● On state voltage drop <1.0 VDC @ 1.5 A
● Loop-back scan time <1.0 ms for all 16 points
● Functional earth to protective earth isolation 500 VDC, minimum
● Functional earth to functional earth (logic) isolation 800 VDC, minimum
