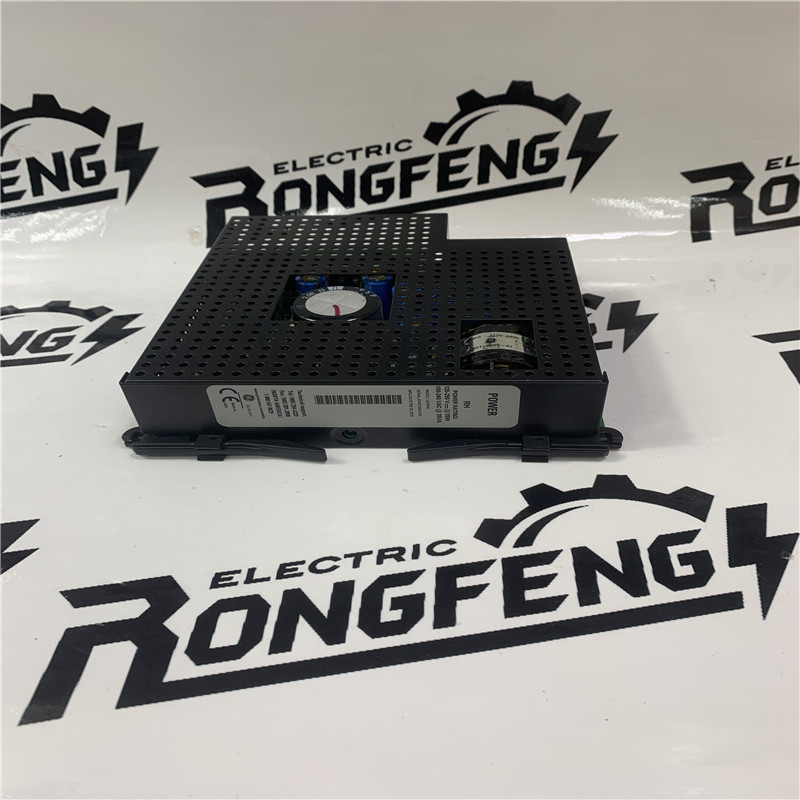

UR RHH GE FANUC

Modular construction: common hardware, reduced stock of spare
parts, plug & play modules for maintenance cost savings and
simplification
• Proven flexibility and customization capabilities make UR/URPlus
devices suitable to retrofit almost any kind of legacy P&C scheme
• Large HMI and annunciator panels provide local monitoring &
control capabilities, and backup the substation HMI
• Phasor Measurement Unit (synchrophasor) according to IIEEE®
C37.118 (2011) and IEC® 61850-90-5 directly streamed from your
protective device
• Three ethernet ports enable purpose specific LAN support that
eliminates latency effect of heavy traffic protocols on mission
critical communication services
• Embedded IEEE 1588 time synchronization protocol support
eliminates dedicated IRIG-B wiring requirements for P&C devices
• Complete IEC 61850 Process Bus solution provides resource
optimization and minimizes total P&C life cycle costs
• Increase network availability by reducing failover time to zero
through IEC 62439-3 “PRP” support
• CyberSentry™ provides high-end cyber security aligned to
industry standards and services (NERC® CIP, based, AAA, Radius,
RBAC, Syslog)
• Enhanced CT/VT module diagnostics verify analog signal integrity
using an advanced algorithm, ensuring reliability
• Reduces system event analysis effort with the support of
embedded high-end and extended recording functionality
• Protection, control, monitoring and supervision of power assets
across generation, transmission, distribution, substation and
industrial systems
• Utility substation and industrial plant automation
• Digital fault recording and Sequence of Event (SOE) recording
• Predictive maintenance through data analysis and trending
• Synchrophasor based monitoring and control systems with
specialized PMU devices that support multiple feeders
• Complex protection & control and wide area monitoring solutions
with complete diagnostic and automation capabilities (URPlus
)
Protection and Control
• Fast and segregated line current differential and distance
protection functionality in a single device
• Phase segregated line current differential with adaptive restraint
and ground differential, stub bus protection
• Phase distance (five zones) with independent settings for
compensation
• Single-pole tripping, breaker-and-half with independent current
source support
• Complete generator protection with 100% stator ground fault
detection with sub-harmonic injection and field ground protection
Communications
• Networking interfaces: 10 or 100MB copper or fiber optic
Ethernet, RS485, RS232, RS422, G.703, C37.94, up to three
independent ethernet ports
• Multiple protocols: IEC 61850, DNP 3.0 and Modbus® serial/TCP,
IEEE 1588, IEC 60870-5-104 and 103, PRP, SNTP, HTTP, TFTP, EGD
• Direct I/O: secure, high-speed exchange of data between URs for
direct transfer trip and I/O extension applications
IEC 61850 Process Bus Interface
• Robust communications with up to 8 HardFiber Bricks
• Redundant architecture for dependability and security
Monitoring and Metering
• Synchrophasors in select products with IEEE C37.118 (2011) and
IEC 61850-90-5 support
• Advanced recording capabilities deliver a 1024 event recorder,
configurable and extended waveform capture and data logger
• Fault locator and user-programmable fault reports
• Breaker condition monitoring including breaker arcing current
(I2t), breaker re-strike and breaker flashover
• Metering: current, voltage, power, power factor, frequency,
voltage & current harmonics, energy, demand, phasors, etc.
EnerVista™ Software
• Graphical Logic Designer and Logic Monitor to simplify
configuration and testing procedures via EnerVista UR Engineer
• Service and update notification toolset ensures device documents
and software are up-to-date via EnerVista Launchpad
• EnerVista Integrator providing easy integration of data in the UR
Family into new or existing monitoring and control systems
FEATURES
APPLICATIONS
